PBSS4520X,135

In Stock: 4,000

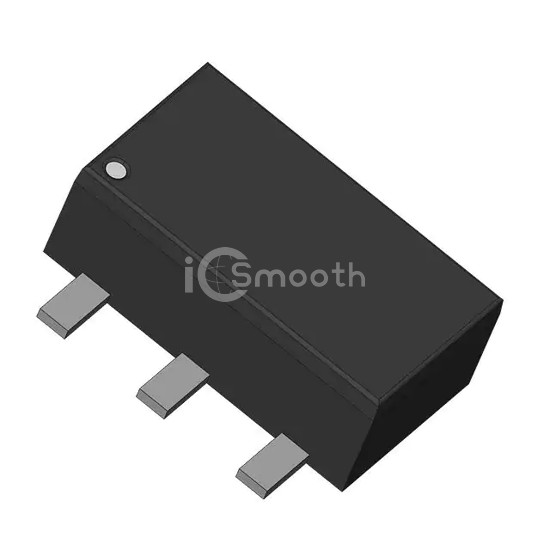

PBSS4520X,135 - Nexperia USA Inc. - Transistors - Bipolar (BJT) - Single
REF: PBSS4520X,135 Nexperia USA Inc.
PBSS4520X,135

Nexperia USA Inc.

PBSS4520X - 20V, 5A NPN LOW VCES

PBSS4520X,135 is a Transistors - Bipolar (BJT) - Single manufactured by Nexperia USA Inc.. PBSS4520X - 20V, 5A NPN LOW VCES. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 4,000

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic220mV @ 500mA, 5A
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce250 @ 2A, 2V
Power - Max550 mW
Frequency - Transition125MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89
