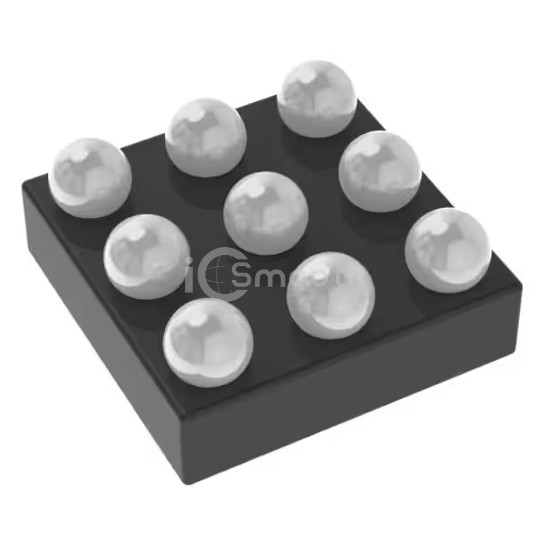

NXT4556UPZ

In Stock: 3,000
NXT4556UPZ - Nexperia USA Inc. - Logic - Translators, Level Shifters
REF: NXT4556UPZ Nexperia USA Inc.
NXT4556UPZ

Nexperia USA Inc.

VOLTAGE TRANSLATORS

NXT4556UPZ is a Logic - Translators, Level Shifters manufactured by Nexperia USA Inc.. VOLTAGE TRANSLATORS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 9-WFBGA, CSPBGA, output type Non-Inverted.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD
3,000+ $0.2575 —
6,000+ $0.2508 -3%
9,000+ $0.2475 -4%
15,000+ $0.2437 -5%
21,000+ $0.2415 -6%
30,000+ $0.2395 -7% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit3
Voltage - VCCA1.65 V ~ 3.6 V
Voltage - VCCB1.2 V ~ 3.6 V
Input Signal-
Output Signal-
Output TypeNon-Inverted
Data Rate5Mbps
Operating Temperature-40°C ~ 85°C (TA)
Features-
Mounting TypeSurface Mount
Package / Case9-WFBGA, CSPBGA
Supplier Device Package9-WLCSP (1.06x1.06)
