NXS0102DCH

In Stock: 3,000

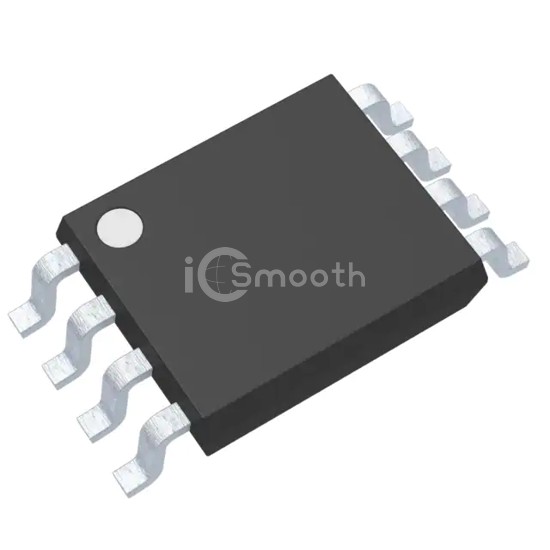

NXS0102DCH - Nexperia USA Inc. - Logic - Translators, Level Shifters
REF: NXS0102DCH Nexperia USA Inc.
NXS0102DCH

Nexperia USA Inc.

NXS0102DC/SOT765/VSSOP8

NXS0102DCH is a Logic - Translators, Level Shifters manufactured by Nexperia USA Inc.. NXS0102DC/SOT765/VSSOP8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-VFSOP (0.091", 2.30mm Width), output type Open Drain.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD
1+ $0.4800 —
10+ $0.3390 -29%
25+ $0.3032 -37%
100+ $0.2633 -45%
250+ $0.2442 -49%
500+ $0.2327 -52%
1,000+ $0.2249 -53% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit2
Voltage - VCCA1.65 V ~ 3.6 V
Voltage - VCCB2.3 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeOpen Drain
Data Rate24Mbps
Operating Temperature-40°C ~ 125°C (TA)
Features-
Mounting TypeSurface Mount
Package / Case8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package8-VSSOP
