Name: NXS0101GSH
Brand: Nexperia USA Inc.
SKU: NXS0101GSH
Price: 0.38 USD
Availability: InStock

REF: NXS0101GSH Nexperia USA Inc.

NXS0101GSH

ANALOG & LOGIC ICS

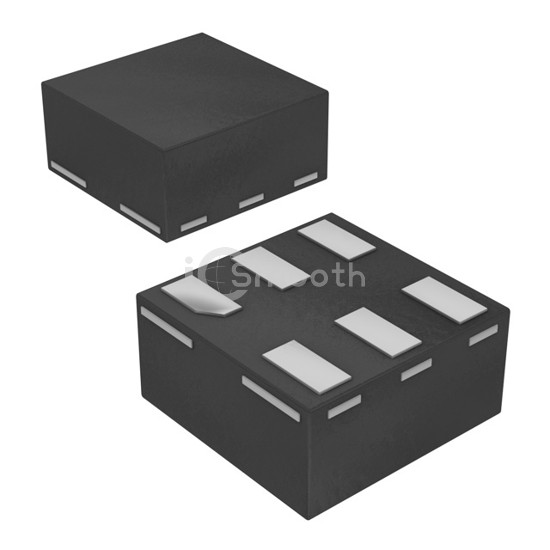

NXS0101GSH is a Logic - Translators, Level Shifters manufactured by Nexperia USA Inc.. ANALOG & LOGIC ICS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFDFN, output type Open Drain, Push-Pull.

Datasheet Request a Quote

In Stock: 875

Tiered Pricing USD

1+ $0.3800 —

10+ $0.2660 -30%

25+ $0.2368 -38%

100+ $0.2045 -46%

250+ $0.1892 -50%

500+ $0.1799 -53%

1,000+ $0.1723 -55%

2,500+ $0.1717 -55% BEST

Specifications

16 parameters

Product Status	Active
Translator Type	Voltage Level
Channel Type	Bidirectional
Number of Circuits	1
Channels per Circuit	1
Voltage - VCCA	1.65 V ~ 3.6 V
Voltage - VCCB	2.3 V ~ 5.5 V
Input Signal	-

Output Signal	-
Output Type	Open Drain, Push-Pull
Data Rate	24Mbps
Operating Temperature	-40°C ~ 125°C (TA)
Features	-
Mounting Type	Surface Mount
Package / Case	6-XFDFN
Supplier Device Package	6-XSON, SOT1202 (1x1)
