NXB0102DCH

In Stock: 8,418

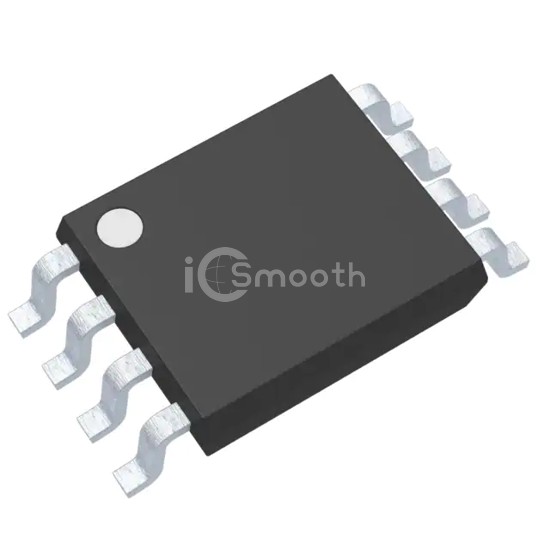

NXB0102DCH - Nexperia USA Inc. - Logic - Translators, Level Shifters
REF: NXB0102DCH Nexperia USA Inc.
NXB0102DCH

Nexperia USA Inc.

NXB0102DC/SOT765/VSSOP8

NXB0102DCH is a Logic - Translators, Level Shifters manufactured by Nexperia USA Inc.. NXB0102DC/SOT765/VSSOP8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-VFSOP (0.091", 2.30mm Width), output type Tri-State.

Datasheet Request a Quote

In Stock: 8,418

Tiered Pricing USD
1+ $0.5400 —
10+ $0.3820 -29%
25+ $0.3420 -37%
100+ $0.2977 -45%
250+ $0.2765 -49%
500+ $0.2638 -51%
1,000+ $0.2564 -53% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit2
Voltage - VCCA1.2 V ~ 3.6 V
Voltage - VCCB1.65 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeTri-State
Data Rate100Mbps
Operating Temperature-40°C ~ 125°C (TA)
Features-
Mounting TypeSurface Mount
Package / Case8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package8-VSSOP
