NCA9306DCH

In Stock: 1,512

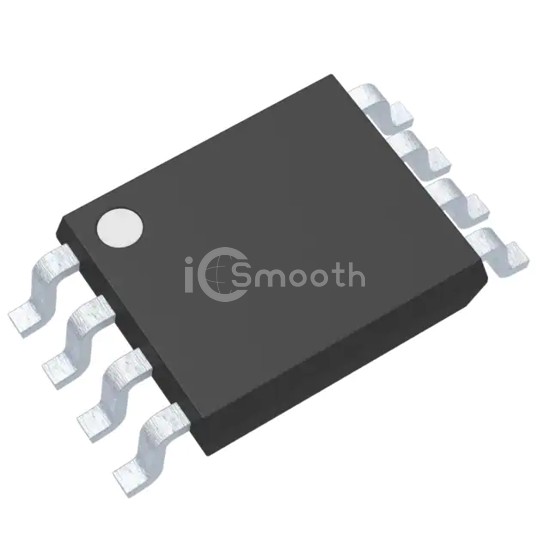

NCA9306DCH - Nexperia USA Inc. - Logic - Translators, Level Shifters
REF: NCA9306DCH Nexperia USA Inc.
NCA9306DCH

Nexperia USA Inc.

NCA9306DC/SOT765/VSSOP8

NCA9306DCH is a Logic - Translators, Level Shifters manufactured by Nexperia USA Inc.. NCA9306DC/SOT765/VSSOP8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-VFSOP (0.091", 2.30mm Width), output type Open Drain, Push-Pull.

Datasheet Request a Quote

In Stock: 1,512

Tiered Pricing USD
1+ $0.5100 —
10+ $0.3560 -30%
25+ $0.3184 -38%
100+ $0.2766 -46%
250+ $0.2568 -50%
500+ $0.2448 -52%
1,000+ $0.2349 -54% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit2
Voltage - VCCA0 V ~ 5 V
Voltage - VCCB0 V ~ 5 V
Input Signal-
Output Signal-
Output TypeOpen Drain, Push-Pull
Data Rate100MHz
Operating Temperature-40°C ~ 125°C (TA)
Features-
Mounting TypeSurface Mount
Package / Case8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package8-VSSOP
