Name: BCX56,115
Brand: Nexperia USA Inc.
SKU: BCX56,115
Price: 0.11 USD
Availability: InStock

REF: BCX56,115 Nexperia USA Inc.

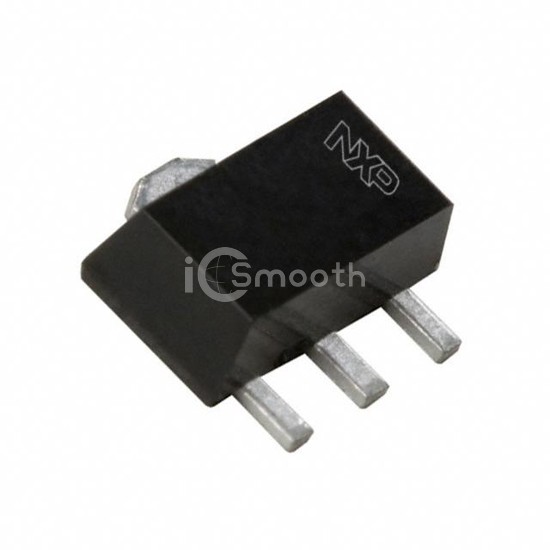

BCX56,115

TRANS NPN 80V 1A SOT89

BCX56,115 is a Transistors - Bipolar (BJT) - Single manufactured by Nexperia USA Inc.. TRANS NPN 80V 1A SOT89. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 5,486

Tiered Pricing USD

1,000+ $0.1122 —

2,000+ $0.1006 -10%

3,000+ $0.0946 -16%

5,000+ $0.0879 -22%

7,000+ $0.0840 -25%

10,000+ $0.0801 -29%

25,000+ $0.0717 -36%

50,000+ $0.0664 -41%

100,000+ $0.0625 -44% BEST

Specifications

13 parameters

Product Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V

Power - Max	1.25 W
Frequency - Transition	180MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	SOT-89
