Name: BAT54L,315
Brand: Nexperia USA Inc.
SKU: BAT54L,315
Price: 0.04 USD
Availability: InStock

REF: BAT54L,315 Nexperia USA Inc.

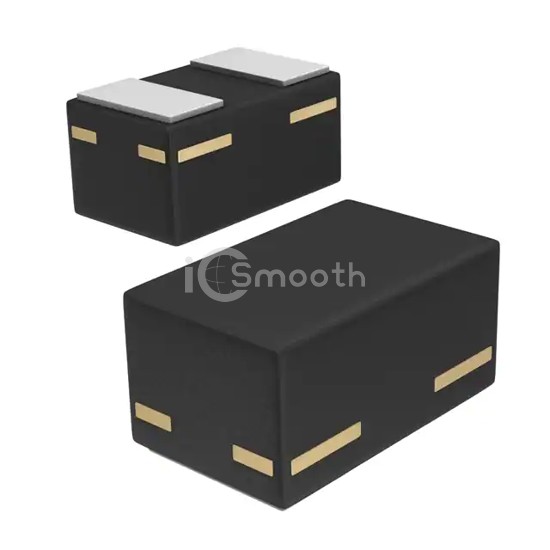

BAT54L,315

DIODE SCHOT 30V 200MA DFN1006-2

BAT54L,315 is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOT 30V 200MA DFN1006-2. Key specifications: mounting type Surface Mount, package / case SOD-882.

Datasheet Request a Quote

In Stock: 2,802

Tiered Pricing USD

10,000+ $0.0407 —

20,000+ $0.0369 -9%

30,000+ $0.0350 -14%

50,000+ $0.0328 -19%

70,000+ $0.0316 -23%

100,000+ $0.0303 -26%

250,000+ $0.0276 -32% BEST

Specifications

13 parameters

Product Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	800 mV @ 100 mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	2 µA @ 25 V
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-882
Supplier Device Package	DFN1006-2
Operating Temperature - Junction	150°C (Max)
