74LVC3G14GF

In Stock: 10,000

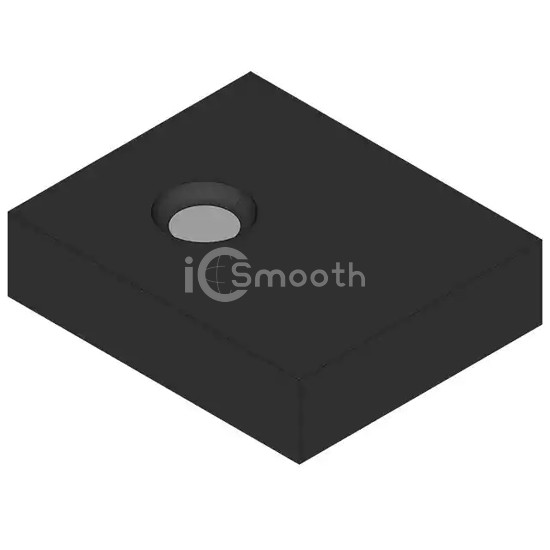

74LVC3G14GF - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LVC3G14GF Nexperia USA Inc.
74LVC3G14GF

Nexperia USA Inc.

IC INVERT SCHMITT 3CH 3-IN 8XSON

74LVC3G14GF is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 3CH 3-IN 8XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-XFDFN.

Datasheet Request a Quote

In Stock: 10,000

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits3
Number of Inputs3
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low1.1V ~ 2.5V
Logic Level - High1.7V ~ 3.8V
Max Propagation Delay @ V, Max CL4.7ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-XSON (1.35x1)
Package / Case8-XFDFN
