74LVC3G04GF,115

In Stock: 3,529

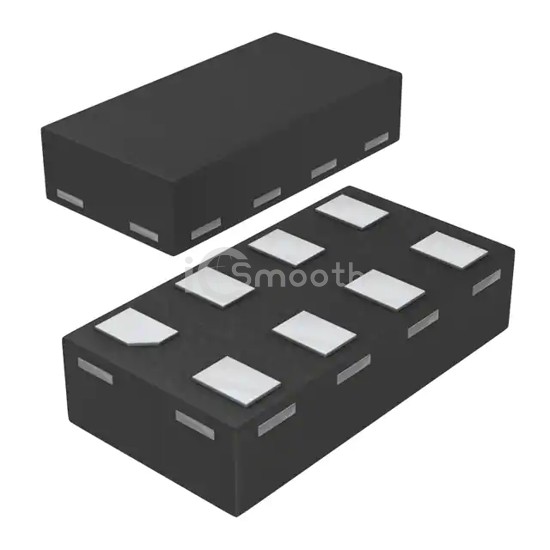

74LVC3G04GF,115 - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LVC3G04GF,115 Nexperia USA Inc.
74LVC3G04GF,115

Nexperia USA Inc.

IC INVERTER 3CH 3-INP 8XSON

74LVC3G04GF,115 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERTER 3CH 3-INP 8XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-XFDFN.

Datasheet Request a Quote

In Stock: 3,529

Tiered Pricing USD
5,000+ $0.2114 —
10,000+ $0.2064 -2%
15,000+ $0.2039 -4%
25,000+ $0.2011 -5%
35,000+ $0.1994 -6%
50,000+ $0.1979 -6% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits3
Number of Inputs3
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL3.2ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-XSON (1.35x1)
Package / Case8-XFDFN
