Name: 74LVC2G86GXX
Brand: Nexperia USA Inc.
SKU: 74LVC2G86GXX
Price: 0.46 USD
Availability: InStock

REF: 74LVC2G86GXX Nexperia USA Inc.

74LVC2G86GXX

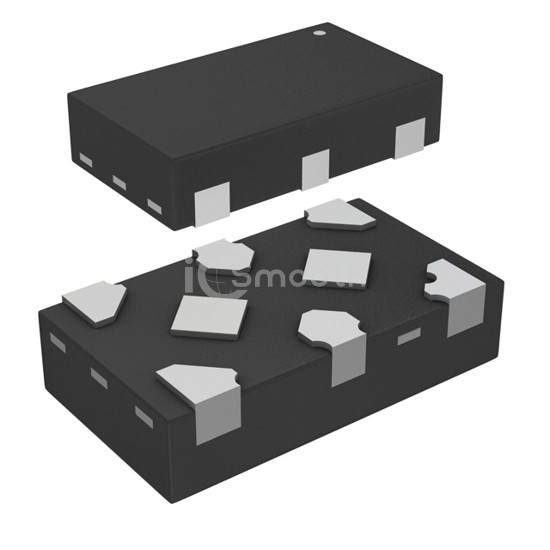

IC GATE XOR 2CH 2-INP 8X2SON

74LVC2G86GXX is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE XOR 2CH 2-INP 8X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3.3V ~ 5V, package / case 8-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 39,985

Tiered Pricing USD

1+ $0.4600 —

10+ $0.3220 -30%

25+ $0.2876 -37%

100+ $0.2495 -46%

250+ $0.2313 -50%

500+ $0.2203 -52%

1,000+ $0.2124 -54% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	XOR (Exclusive OR)
Number of Circuits	2
Number of Inputs	2
Features	-
Voltage - Supply	3.3V ~ 5V
Current - Quiescent (Max)	4 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.07V ~ 0.55V
Logic Level - High	1.2V ~ 4.11V
Max Propagation Delay @ V, Max CL	4.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	8-X2SON (1.35x0.8)
Package / Case	8-XFDFN Exposed Pad
