74LVC2G38GXX

In Stock: 38,800

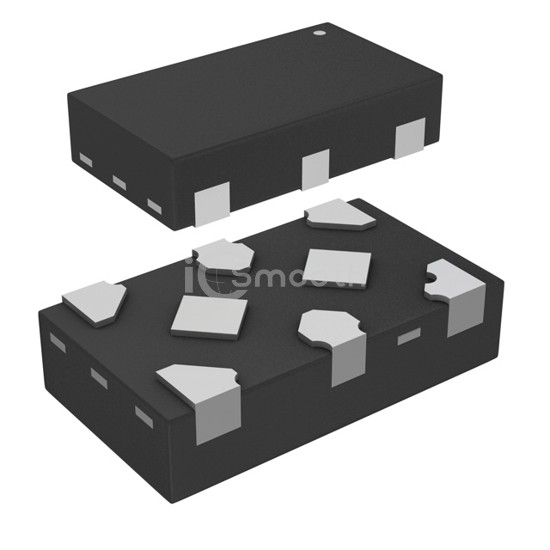

74LVC2G38GXX - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LVC2G38GXX Nexperia USA Inc.
74LVC2G38GXX

Nexperia USA Inc.

IC GATE NAND 2CH 2-INP 8X2SON

74LVC2G38GXX is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 2CH 2-INP 8X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 38,800

Tiered Pricing USD
1+ $0.4600 —
10+ $0.3220 -30%
25+ $0.2876 -37%
100+ $0.2495 -46%
250+ $0.2313 -50%
500+ $0.2203 -52%
1,000+ $0.2124 -54% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.1V ~ 0.8V
Logic Level - High-
Max Propagation Delay @ V, Max CL4.2ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-X2SON (1.35x0.8)
Package / Case8-XFDFN Exposed Pad
