74LVC2G32GM,125

In Stock: 186

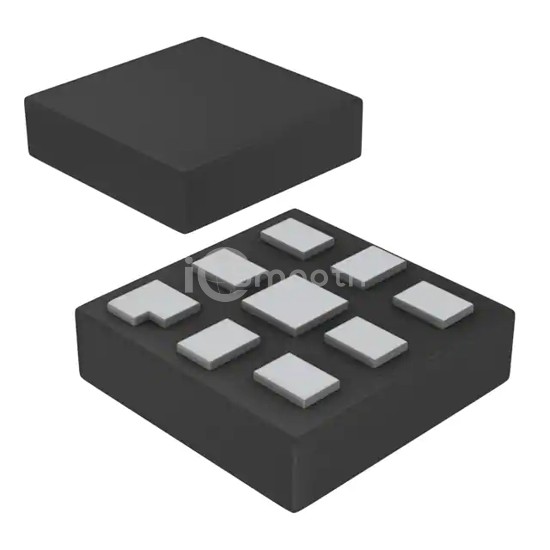

74LVC2G32GM,125 - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LVC2G32GM,125 Nexperia USA Inc.
74LVC2G32GM,125

Nexperia USA Inc.

IC GATE OR 2CH 2-INP 8XQFN

74LVC2G32GM,125 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE OR 2CH 2-INP 8XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-XFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 186

Tiered Pricing USD
4,000+ $0.2821 —
8,000+ $0.2753 -2%
12,000+ $0.2719 -4%
20,000+ $0.2682 -5%
28,000+ $0.2660 -6% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL3.2ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-XQFN (1.6x1.6)
Package / Case8-XFQFN Exposed Pad
