74LVC1G86GF,132

In Stock: 7,019

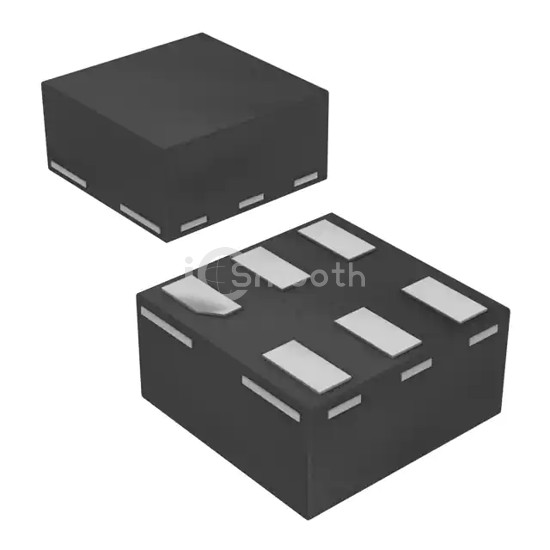

74LVC1G86GF,132 - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LVC1G86GF,132 Nexperia USA Inc.
74LVC1G86GF,132

Nexperia USA Inc.

IC GATE XOR 1CH 2-INP 6XSON

74LVC1G86GF,132 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE XOR 1CH 2-INP 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 7,019

Specifications

15 parameters
Product StatusObsolete
Logic TypeXOR (Exclusive OR)
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL4ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON, SOT891 (1x1)
Package / Case6-XFDFN
