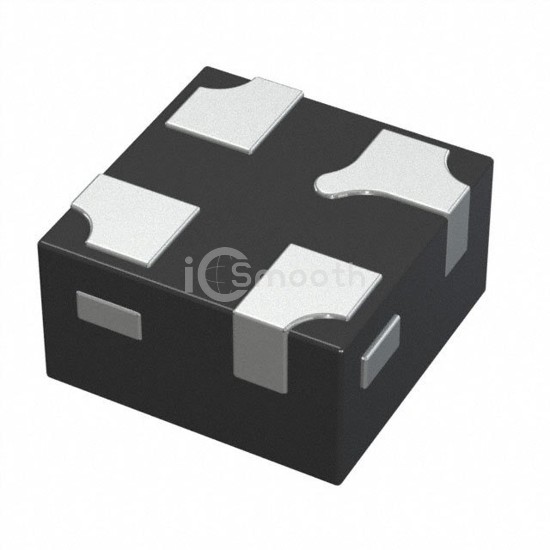

Name: 74LVC1G14GX4-Q100Z
Brand: Nexperia USA Inc.
SKU: 74LVC1G14GX4-Q100Z
Price: 0.27 USD
Availability: InStock

REF: 74LVC1G14GX4-Q100Z Nexperia USA Inc.

74LVC1G14GX4-Q100Z

Nexperia USA Inc.

74LVC1G14-Q100 - SINGLE SCHMITT

74LVC1G14GX4-Q100Z is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. 74LVC1G14-Q100 - SINGLE SCHMITT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN.

Datasheet Request a Quote

In Stock: 5,007

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1820 -33%

25+ $0.1616 -40%

100+ $0.1384 -49%

250+ $0.1275 -53%

500+ $0.1208 -55%

1,000+ $0.1154 -57%

2,500+ $0.1129 -58% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	Inverter
Number of Circuits	1
Number of Inputs	1
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	4 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.78V ~ 2.27V
Logic Level - High	1.14V ~ 2.79V
Max Propagation Delay @ V, Max CL	6.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	4-X2SON (0.6x0.6)
Package / Case	4-XFDFN
