74LVC1G04GX4Z

In Stock: 398,431

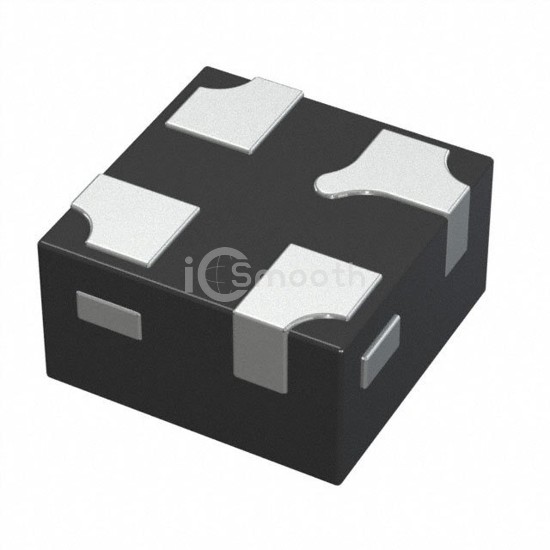

74LVC1G04GX4Z - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LVC1G04GX4Z Nexperia USA Inc.
74LVC1G04GX4Z

Nexperia USA Inc.

IC INVERTER 1CH 1-INP 4X2SON

74LVC1G04GX4Z is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERTER 1CH 1-INP 4X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN.

Datasheet Request a Quote

In Stock: 398,431

Tiered Pricing USD
1+ $0.2300 —
10+ $0.1560 -32%
25+ $0.1376 -40%
100+ $0.1178 -49%
250+ $0.1082 -53%
500+ $0.1024 -55%
1,000+ $0.0977 -58%
2,500+ $0.0949 -59% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits1
Number of Inputs1
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)4 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.1V ~ 0.8V
Logic Level - High0.95V ~ 3.4V
Max Propagation Delay @ V, Max CL5ns @ 5.5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package4-X2SON (0.6x0.6)
Package / Case4-XFDFN
