74LVC14ABZZ

In Stock: 7,413

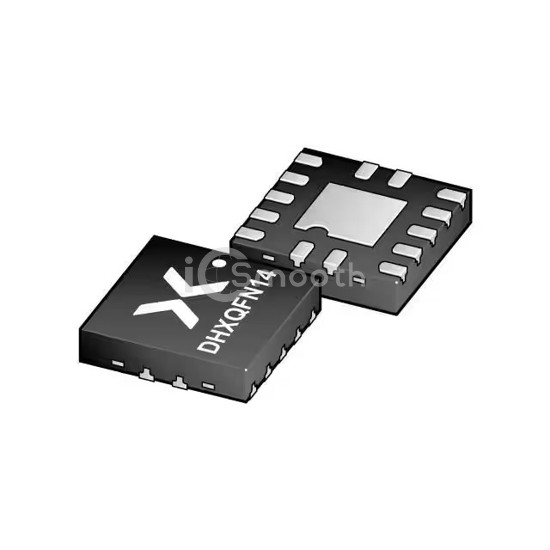

74LVC14ABZZ - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LVC14ABZZ Nexperia USA Inc.
74LVC14ABZZ

Nexperia USA Inc.

74LVC14ABZ/SOT8014/DHXQFN14

74LVC14ABZZ is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. 74LVC14ABZ/SOT8014/DHXQFN14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 3.6V, package / case 14-XFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,413

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 3.6V
Current - Quiescent (Max)40 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.75V ~ 1.5V
Logic Level - High1V ~ 2V
Max Propagation Delay @ V, Max CL8ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-DHXQFN (2x2)
Package / Case14-XFQFN Exposed Pad
