74LV574PW,118

In Stock: 1,340

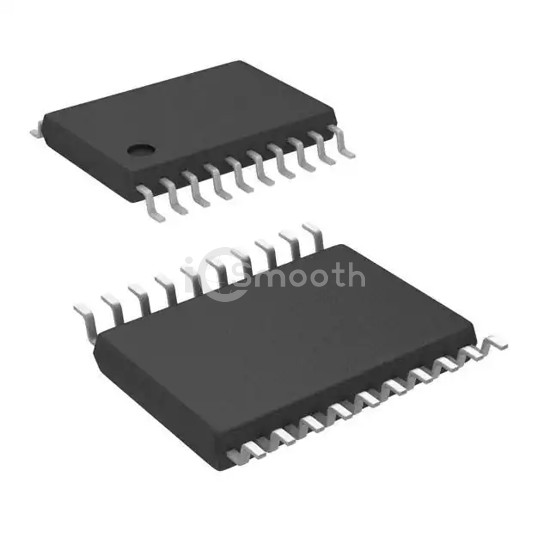

74LV574PW,118 - Nexperia USA Inc. - Logic - Flip Flops
REF: 74LV574PW,118 Nexperia USA Inc.
74LV574PW,118

Nexperia USA Inc.

IC FF D-TYPE SNGL 8BIT 20TSSOP

74LV574PW,118 is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF D-TYPE SNGL 8BIT 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1V ~ 5.5V, package / case 20-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 1,340

Specifications

17 parameters
Product StatusObsolete
FunctionStandard
TypeD-Type
Output TypeTri-State, Non-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency70 MHz
Max Propagation Delay @ V, Max CL17ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low16mA, 16mA
Voltage - Supply1V ~ 5.5V
Current - Quiescent (Iq)20 µA
Input Capacitance3.5 pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package20-TSSOP
Package / Case20-TSSOP (0.173", 4.40mm Width)
