74LV540APWJ

In Stock: 19

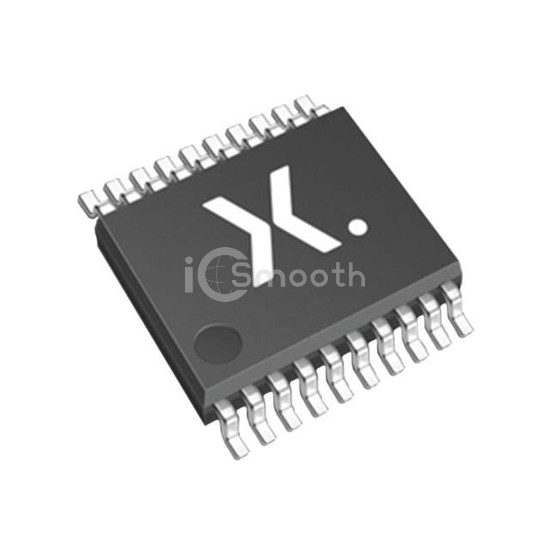

74LV540APWJ - Nexperia USA Inc. - Logic - Buffers, Drivers, Receivers, Transceivers
REF: 74LV540APWJ Nexperia USA Inc.
74LV540APWJ

Nexperia USA Inc.

IC BUFFER INVERT 5.5V 20TSSOP

74LV540APWJ is a Logic - Buffers, Drivers, Receivers, Transceivers manufactured by Nexperia USA Inc.. IC BUFFER INVERT 5.5V 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2V ~ 5.5V, package / case 20-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 19

Tiered Pricing USD
1+ $0.6100 —
10+ $0.4340 -29%
25+ $0.3888 -36%
100+ $0.3393 -44%
250+ $0.3156 -48%
500+ $0.3014 -51%
1,000+ $0.2948 -52% BEST

Specifications

12 parameters
Product StatusActive
Logic TypeBuffer, Inverting
Number of Elements1
Number of Bits per Element8
Input Type-
Output Type3-State
Current - Output High, Low16mA, 16mA
Voltage - Supply2V ~ 5.5V
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package20-TSSOP
