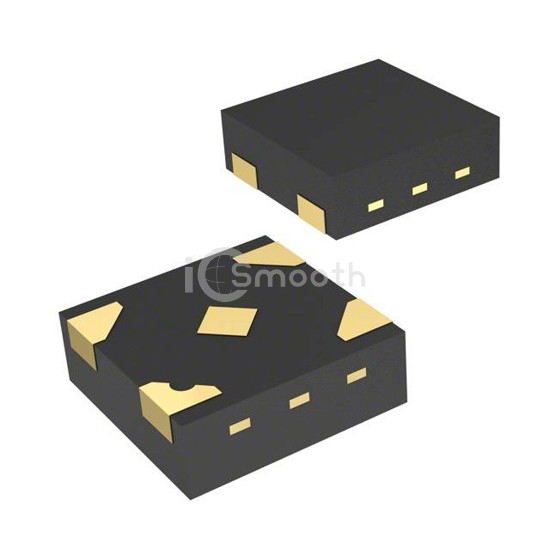

Name: 74LV1T02GXH
Brand: Nexperia USA Inc.
SKU: 74LV1T02GXH
Price: 0.27 USD
Availability: InStock

REF: 74LV1T02GXH Nexperia USA Inc.

74LV1T02GXH

IC GATE NOR 1CH 2-INP 5X2SON

74LV1T02GXH is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NOR 1CH 2-INP 5X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.6V ~ 5.5V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 76,829

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1830 -32%

25+ $0.1620 -40%

100+ $0.1390 -49%

250+ $0.1280 -53%

500+ $0.1213 -55%

1,000+ $0.1158 -57%

2,500+ $0.1134 -58% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NOR Gate
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	1.6V ~ 5.5V
Current - Quiescent (Max)	1 µA
Current - Output High, Low	8mA, 8mA

Logic Level - Low	0.1V ~ 0.3V
Logic Level - High	1.28V ~ 4.6V
Max Propagation Delay @ V, Max CL	4.7ns @ 5V, 30pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	5-X2SON (0.80x0.80)
Package / Case	4-XFDFN Exposed Pad
