74LV14ABZZ

In Stock: 2,223
74LV14ABZZ - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74LV14ABZZ Nexperia USA Inc.
74LV14ABZZ

Nexperia USA Inc.

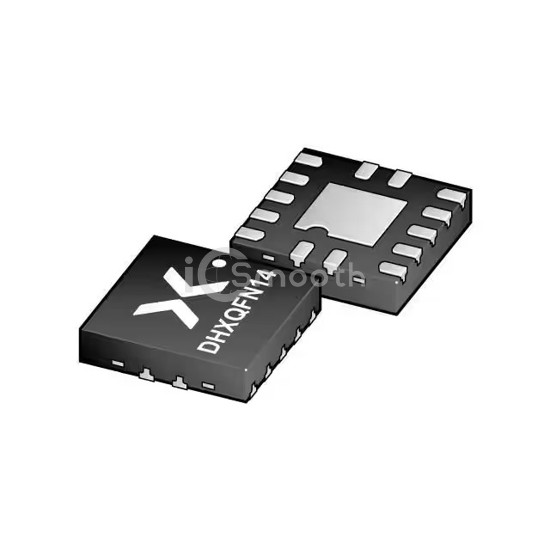

74LV14ABZ/SOT8014/DHXQFN14

74LV14ABZZ is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. 74LV14ABZ/SOT8014/DHXQFN14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 14-XFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,223

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)2 µA
Current - Output High, Low12mA, 12mA
Logic Level - Low0.75V ~ 1.5V
Logic Level - High1.75V ~ 3.5V
Max Propagation Delay @ V, Max CL10.6ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-DHXQFN (2x2)
Package / Case14-XFQFN Exposed Pad
