74HCT4520DB,118

In Stock: 1,259
74HCT4520DB,118 - Nexperia USA Inc. - Logic - Counters, Dividers
REF: 74HCT4520DB,118 Nexperia USA Inc.

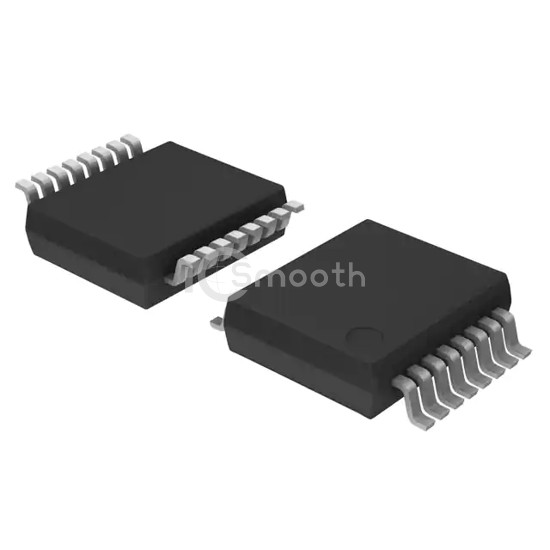

74HCT4520DB,118

Nexperia USA Inc.

IC DUAL 4BIT SYNC BINARY 16SSOP

74HCT4520DB,118 is a Logic - Counters, Dividers manufactured by Nexperia USA Inc.. IC DUAL 4BIT SYNC BINARY 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5 V ~ 5.5 V, package / case 16-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 1,259

Tiered Pricing USD
2,000+ $0.4373 —
4,000+ $0.4258 -3%
6,000+ $0.4201 -4%
10,000+ $0.4137 -5%
14,000+ $0.4100 -6%
20,000+ $0.4064 -7% BEST

Specifications

14 parameters
Product StatusObsolete
Logic TypeBinary Counter
DirectionUp
Number of Elements2
Number of Bits per Element4
ResetAsynchronous
TimingSynchronous
Count Rate58 MHz
Trigger TypePositive, Negative
Voltage - Supply4.5 V ~ 5.5 V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SSOP (0.209", 5.30mm Width)
Supplier Device Package16-SSOP
