74HCT4020BQ-Q100X

In Stock: 2,850

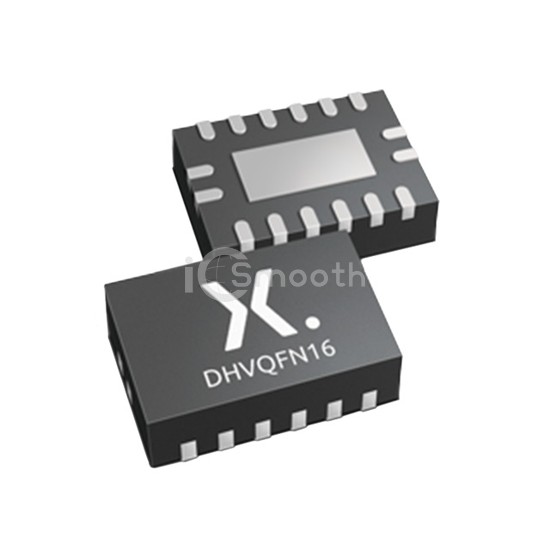

74HCT4020BQ-Q100X - Nexperia USA Inc. - Logic - Counters, Dividers
REF: 74HCT4020BQ-Q100X Nexperia USA Inc.
74HCT4020BQ-Q100X

Nexperia USA Inc.

IC RIPPLE COUNTER 14-ST 16DHVQFN

74HCT4020BQ-Q100X is a Logic - Counters, Dividers manufactured by Nexperia USA Inc.. IC RIPPLE COUNTER 14-ST 16DHVQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5 V ~ 5.5 V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,850

Tiered Pricing USD
1+ $0.5900 —
10+ $0.4200 -29%
25+ $0.3756 -36%
100+ $0.3277 -44%
250+ $0.3047 -48%
500+ $0.2909 -51%
1,000+ $0.2841 -52% BEST

Specifications

14 parameters
Product StatusActive
Logic TypeBinary Counter
DirectionUp
Number of Elements1
Number of Bits per Element14
ResetAsynchronous
Timing-
Count Rate47 MHz
Trigger TypeNegative Edge
Voltage - Supply4.5 V ~ 5.5 V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-DHVQFN (2.5x3.5)
