74HCT3G14DC

In Stock: 6,257

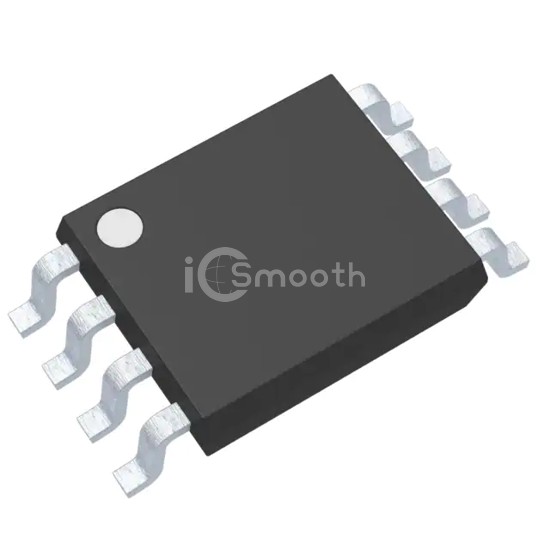

74HCT3G14DC - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74HCT3G14DC Nexperia USA Inc.
74HCT3G14DC

Nexperia USA Inc.

IC INVERT SCHMITT 3CH 3IN 8VSSOP

74HCT3G14DC is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 3CH 3IN 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 6,257

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits3
Number of Inputs3
FeaturesSchmitt Trigger
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low4mA, 4mA
Logic Level - Low0.5V ~ 0.6V
Logic Level - High1.9V ~ 2.1V
Max Propagation Delay @ V, Max CL32ns @ 4.5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-VSSOP
Package / Case8-VFSOP (0.091", 2.30mm Width)
