74HCT174DB,118

In Stock: 5,214

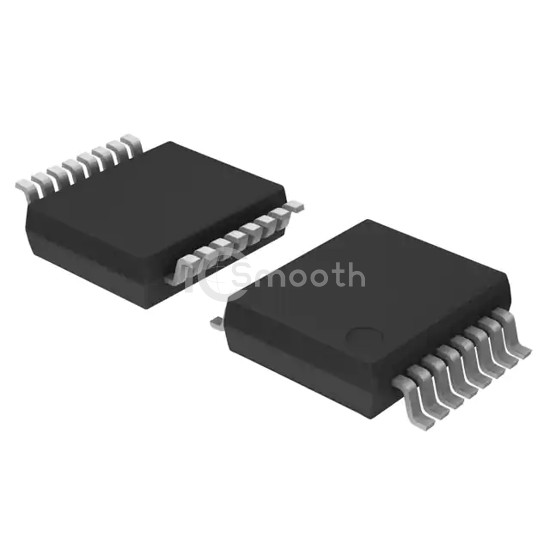

74HCT174DB,118 - Nexperia USA Inc. - Logic - Flip Flops
REF: 74HCT174DB,118 Nexperia USA Inc.
74HCT174DB,118

Nexperia USA Inc.

IC FF D-TYPE SNGL 6BIT 16SSOP

74HCT174DB,118 is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF D-TYPE SNGL 6BIT 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 5,214

Specifications

17 parameters
Product StatusObsolete
FunctionMaster Reset
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element6
Clock Frequency69 MHz
Max Propagation Delay @ V, Max CL35ns @ 4.5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low4mA, 5.2mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)8 µA
Input Capacitance3.5 pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SSOP
Package / Case16-SSOP (0.209", 5.30mm Width)
