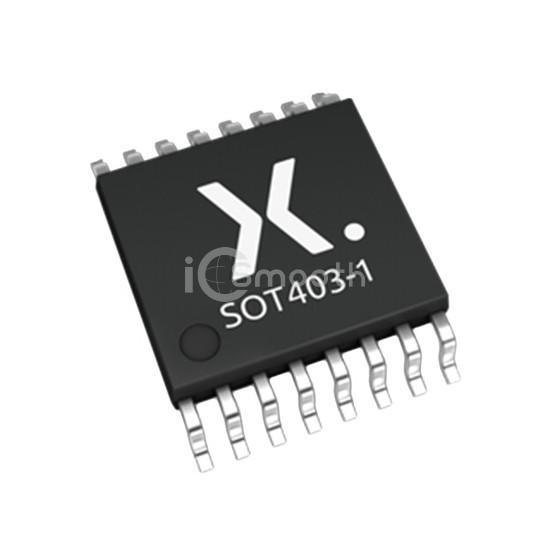

Name: 74HCT109PW-Q100J
Brand: Nexperia USA Inc.
SKU: 74HCT109PW-Q100J
Price: 0.52 USD
Availability: InStock

REF: 74HCT109PW-Q100J Nexperia USA Inc.

74HCT109PW-Q100J

Nexperia USA Inc.

IC FF JK TYPE DUAL 1BIT 16TSSOP

74HCT109PW-Q100J is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF JK TYPE DUAL 1BIT 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-TSSOP (0.173", 4.40mm Width).

Request a Quote

In Stock: 2,392

Tiered Pricing USD

1+ $0.5200 —

10+ $0.3680 -29%

25+ $0.3292 -37%

100+ $0.2862 -45%

250+ $0.2657 -49%

500+ $0.2534 -51%

1,000+ $0.2459 -53% BEST

Specifications

17 parameters

Product Status	Active
Function	Set(Preset) and Reset
Type	JK Type
Output Type	Complementary
Number of Elements	2
Number of Bits per Element	1
Clock Frequency	55 MHz
Max Propagation Delay @ V, Max CL	35ns @ 4.5V, 50pF
Trigger Type	Positive Edge

Current - Output High, Low	4mA, 5.2mA
Voltage - Supply	4.5V ~ 5.5V
Current - Quiescent (Iq)	4 µA
Input Capacitance	3.5 pF
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	16-TSSOP
Package / Case	16-TSSOP (0.173", 4.40mm Width)
