74HCT109PW,112

In Stock: 9,610

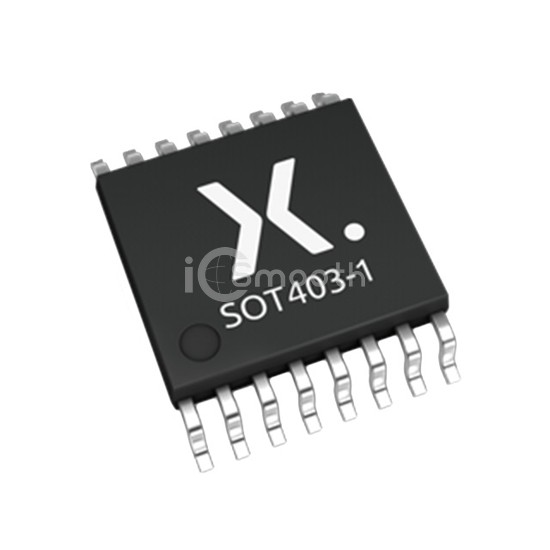

74HCT109PW,112 - Nexperia USA Inc. - Logic - Flip Flops
REF: 74HCT109PW,112 Nexperia USA Inc.
74HCT109PW,112

Nexperia USA Inc.

IC FF JK TYPE DUAL 1BIT 16TSSOP

74HCT109PW,112 is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF JK TYPE DUAL 1BIT 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 9,610

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency55 MHz
Max Propagation Delay @ V, Max CL35ns @ 4.5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low4mA, 4mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)4 µA
Input Capacitance3.5 pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-TSSOP
Package / Case16-TSSOP (0.173", 4.40mm Width)
