74HC86PW

In Stock: 2,626

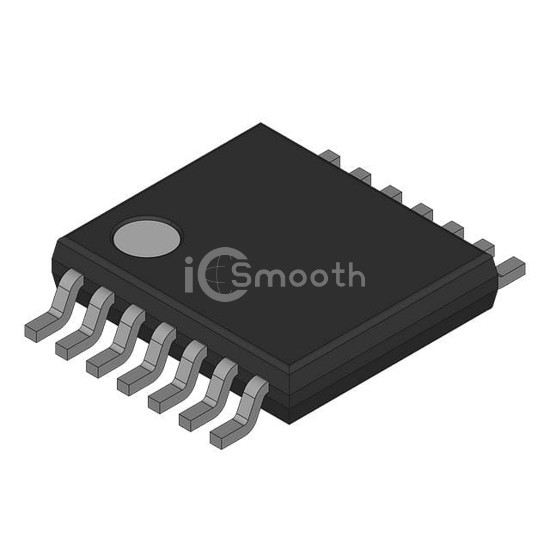

74HC86PW - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74HC86PW Nexperia USA Inc.
74HC86PW

Nexperia USA Inc.

IC GATE XOR 4CH 2-INP 14TSSOP

74HC86PW is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE XOR 4CH 2-INP 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 2,626

Specifications

15 parameters
Product StatusActive
Logic TypeXOR (Exclusive OR)
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)2 µA
Current - Output High, Low5.2mA, 5.2mA
Logic Level - Low0.5V ~ 1.8V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL20ns @ 6V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-TSSOP
Package / Case14-TSSOP (0.173", 4.40mm Width)
