74HC4020BQ-Q100X

In Stock: 3,026

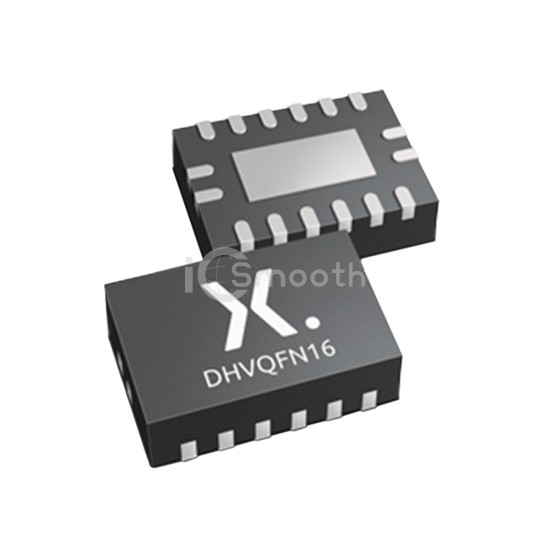

74HC4020BQ-Q100X - Nexperia USA Inc. - Logic - Counters, Dividers
REF: 74HC4020BQ-Q100X Nexperia USA Inc.
74HC4020BQ-Q100X

Nexperia USA Inc.

IC BINARY COUNTER 14-ST 16DHVQFN

74HC4020BQ-Q100X is a Logic - Counters, Dividers manufactured by Nexperia USA Inc.. IC BINARY COUNTER 14-ST 16DHVQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2 V ~ 6 V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,026

Tiered Pricing USD
3,000+ $0.3269 —
6,000+ $0.3187 -2%
9,000+ $0.3146 -4%
15,000+ $0.3101 -5%
21,000+ $0.3074 -6%
30,000+ $0.3049 -7% BEST

Specifications

14 parameters
Product StatusActive
Logic TypeBinary Counter
Direction-
Number of Elements1
Number of Bits per Element14
ResetAsynchronous
Timing-
Count Rate109 MHz
Trigger TypeNegative Edge
Voltage - Supply2 V ~ 6 V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-DHVQFN (2.5x3.5)
