74HC175DB,118

In Stock: 7,546

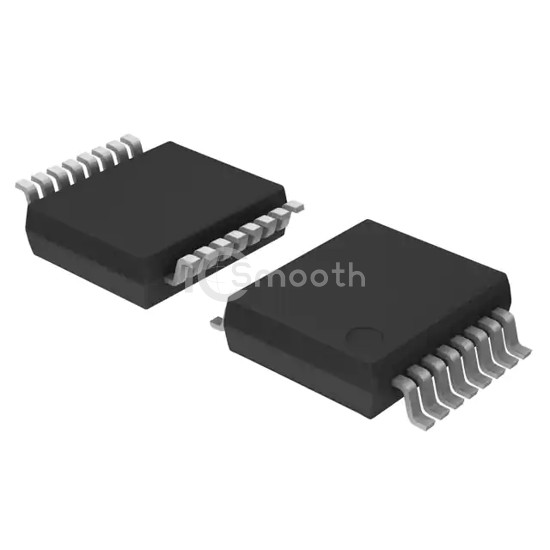

74HC175DB,118 - Nexperia USA Inc. - Logic - Flip Flops
REF: 74HC175DB,118 Nexperia USA Inc.
74HC175DB,118

Nexperia USA Inc.

IC FF D-TYPE SNGL 4BIT 16SSOP

74HC175DB,118 is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF D-TYPE SNGL 4BIT 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 16-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 7,546

Specifications

17 parameters
Product StatusObsolete
FunctionMaster Reset
TypeD-Type
Output TypeComplementary
Number of Elements1
Number of Bits per Element4
Clock Frequency89 MHz
Max Propagation Delay @ V, Max CL30ns @ 6V, 50pF
Trigger TypePositive Edge
Current - Output High, Low5.2mA, 5.2mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)8 µA
Input Capacitance3.5 pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SSOP
Package / Case16-SSOP (0.209", 5.30mm Width)
