74AXP2G14GNH

In Stock: 184,793

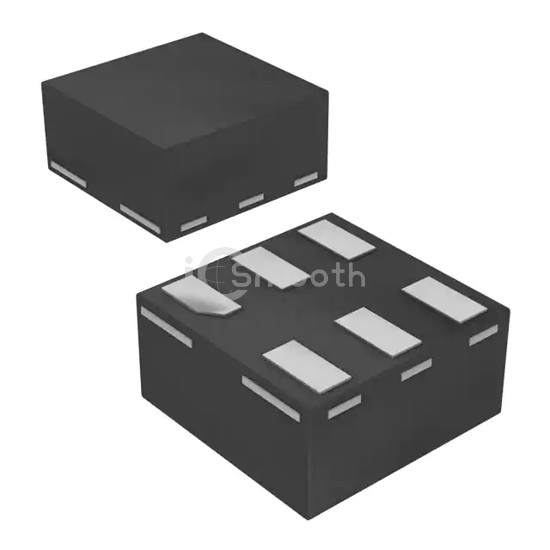

74AXP2G14GNH - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74AXP2G14GNH Nexperia USA Inc.
74AXP2G14GNH

Nexperia USA Inc.

IC INVERT SCHMITT 2CH 2-IN 6XSON

74AXP2G14GNH is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 2CH 2-IN 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.7V ~ 2.75V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 184,793

Tiered Pricing USD
1+ $0.4700 —
10+ $0.3320 -29%
25+ $0.2960 -37%
100+ $0.2569 -45%
250+ $0.2382 -49%
500+ $0.2270 -52%
1,000+ $0.2177 -54%
2,500+ $0.2080 -56% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits2
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply0.7V ~ 2.75V
Current - Quiescent (Max)1 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.2ns @ 2.5V, 5pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON (0.9x1)
Package / Case6-XFDFN
