74AXP1G14GNH

In Stock: 33

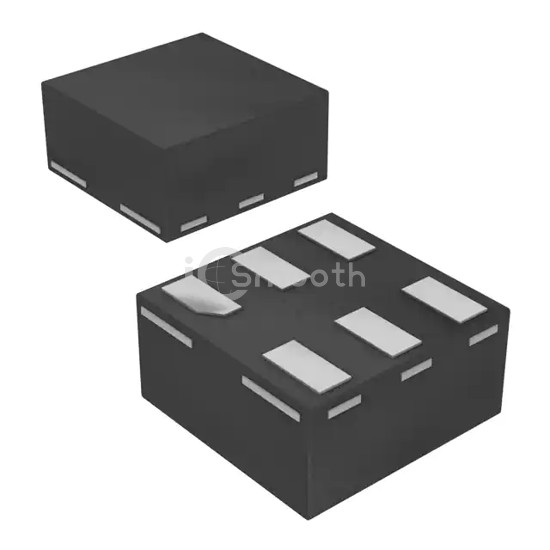

74AXP1G14GNH - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74AXP1G14GNH Nexperia USA Inc.
74AXP1G14GNH

Nexperia USA Inc.

IC INVERT SCHMITT 1CH 1-IN 6XSON

74AXP1G14GNH is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 1CH 1-IN 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.7V ~ 2.75V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 33

Tiered Pricing USD
1+ $0.4400 —
10+ $0.3080 -30%
25+ $0.2752 -37%
100+ $0.2384 -46%
250+ $0.2209 -50%
500+ $0.2103 -52%
1,000+ $0.2017 -54%
2,500+ $0.1925 -56% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits1
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply0.7V ~ 2.75V
Current - Quiescent (Max)600 nA
Current - Output High, Low8mA, 8mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.2ns @ 2.5V, 5pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON (0.9x1)
Package / Case6-XFDFN
