74AXP1G02GSH

In Stock: 6,268

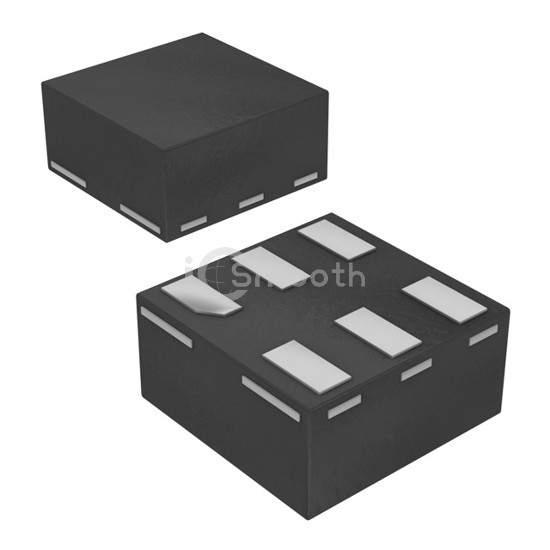

74AXP1G02GSH - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74AXP1G02GSH Nexperia USA Inc.
74AXP1G02GSH

Nexperia USA Inc.

IC GATE NOR 1CH 2-INP 6XSON

74AXP1G02GSH is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NOR 1CH 2-INP 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.7V ~ 2.75V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 6,268

Tiered Pricing USD
5,000+ $0.1169 —
10,000+ $0.1138 -3%
15,000+ $0.1123 -4%
25,000+ $0.1105 -5%
35,000+ $0.1095 -6%
50,000+ $0.1086 -7% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNOR Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply0.7V ~ 2.75V
Current - Quiescent (Max)600 nA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.7V
Logic Level - High1.6V
Max Propagation Delay @ V, Max CL2.8ns @ 2.5V, 5pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON, SOT1202 (1x1)
Package / Case6-XFDFN
