74AXP1G02GNH

In Stock: 3,431

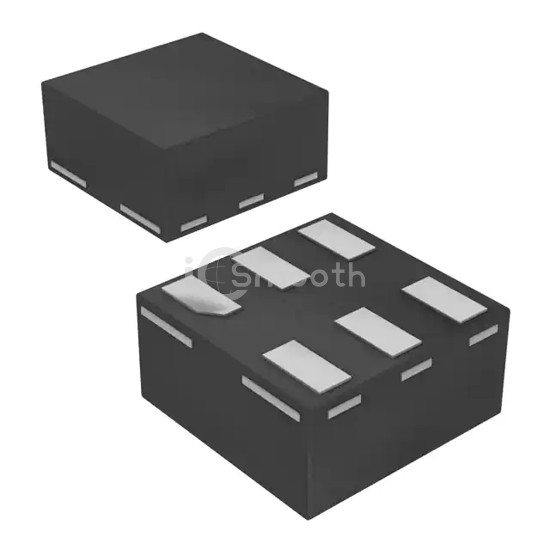

74AXP1G02GNH - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74AXP1G02GNH Nexperia USA Inc.
74AXP1G02GNH

Nexperia USA Inc.

IC GATE NOR 1CH 2-INP 6XSON

74AXP1G02GNH is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NOR 1CH 2-INP 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.7V ~ 2.75V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 3,431

Tiered Pricing USD
5,000+ $0.1870 —
10,000+ $0.1824 -2%
15,000+ $0.1801 -4%
25,000+ $0.1776 -5%
35,000+ $0.1761 -6%
50,000+ $0.1747 -7% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNOR Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply0.7V ~ 2.75V
Current - Quiescent (Max)600 nA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.7V
Logic Level - High1.6V
Max Propagation Delay @ V, Max CL2.8ns @ 2.5V, 5pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON (0.9x1)
Package / Case6-XFDFN
