74AXP1G00GSH

In Stock: 5,000

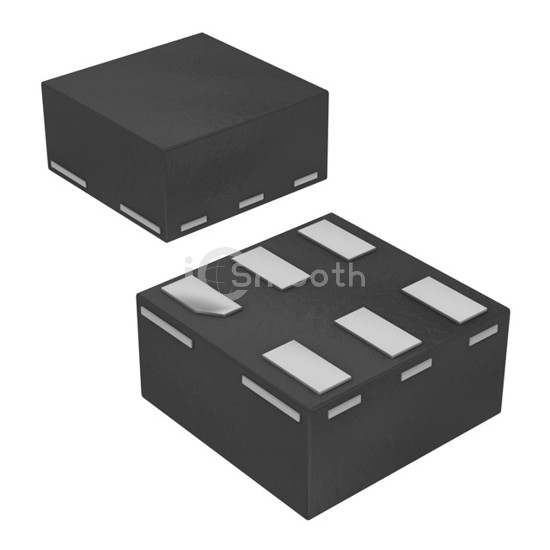

74AXP1G00GSH - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74AXP1G00GSH Nexperia USA Inc.
74AXP1G00GSH

Nexperia USA Inc.

IC GATE NAND 1CH 2-INP 6XSON

74AXP1G00GSH is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 1CH 2-INP 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.7V ~ 2.75V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 5,000

Tiered Pricing USD
1+ $0.2900 —
10+ $0.1990 -31%
25+ $0.1768 -39%
100+ $0.1518 -48%
250+ $0.1400 -52%
500+ $0.1328 -54%
1,000+ $0.1269 -56%
2,500+ $0.1206 -58% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply0.7V ~ 2.75V
Current - Quiescent (Max)600 nA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.7V
Logic Level - High1.6V
Max Propagation Delay @ V, Max CL3ns @ 2.5V, 5pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-XSON, SOT1202 (1x1)
Package / Case6-XFDFN
