74AUP2G38GF,115

In Stock: 4,276

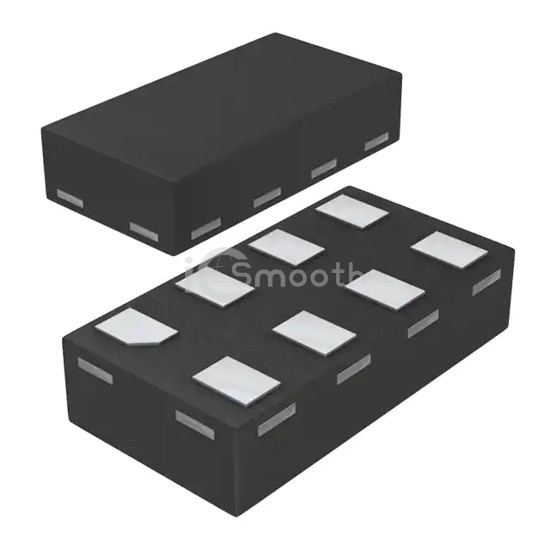

74AUP2G38GF,115 - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74AUP2G38GF,115 Nexperia USA Inc.
74AUP2G38GF,115

Nexperia USA Inc.

IC GATE NAND OD 2CH 2-INP 8XSON

74AUP2G38GF,115 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND OD 2CH 2-INP 8XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 0.8V ~ 3.6V, package / case 8-XFDFN.

Datasheet Request a Quote

In Stock: 4,276

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs2
FeaturesOpen Drain
Voltage - Supply0.8V ~ 3.6V
Current - Quiescent (Max)500 nA
Current - Output High, Low-, 4mA
Logic Level - Low0.7V ~ 0.9V
Logic Level - High1.6V ~ 2V
Max Propagation Delay @ V, Max CL12.7ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-XSON (1.35x1)
Package / Case8-XFDFN
