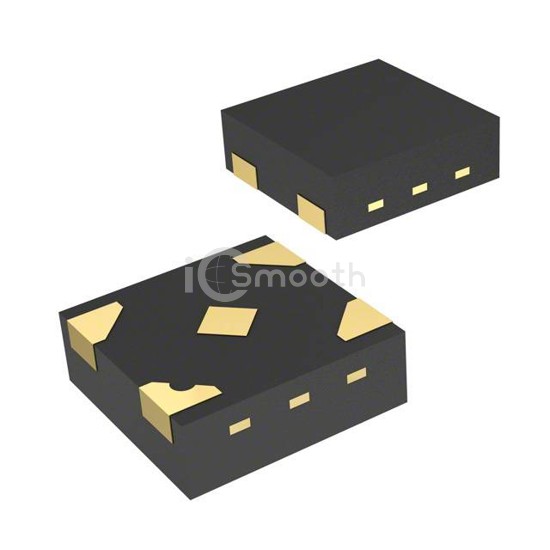

Name: 74AUP1T02GXH
Brand: Nexperia USA Inc.
SKU: 74AUP1T02GXH
Price: 0.33 USD
Availability: InStock

REF: 74AUP1T02GXH Nexperia USA Inc.

74AUP1T02GXH

IC GATE NOR 1CH 2IN 5X2SON

74AUP1T02GXH is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NOR 1CH 2IN 5X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.3V ~ 3.6V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 19,824

Tiered Pricing USD

1+ $0.3300 —

10+ $0.2310 -30%

25+ $0.2056 -38%

100+ $0.1770 -46%

250+ $0.1634 -50%

500+ $0.1553 -53%

1,000+ $0.1485 -55%

2,500+ $0.1470 -55% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NOR Gate
Number of Circuits	1
Number of Inputs	2
Features	Schmitt Trigger
Voltage - Supply	2.3V ~ 3.6V
Current - Quiescent (Max)	1.2 µA
Current - Output High, Low	4mA, 4mA

Logic Level - Low	0.1V ~ 0.44V
Logic Level - High	1.9V ~ 2.6V
Max Propagation Delay @ V, Max CL	6.8ns @ 3.3V, 30pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	5-X2SON (0.80x0.80)
Package / Case	4-XFDFN Exposed Pad
