74AHC30GU12X

In Stock: 9,800

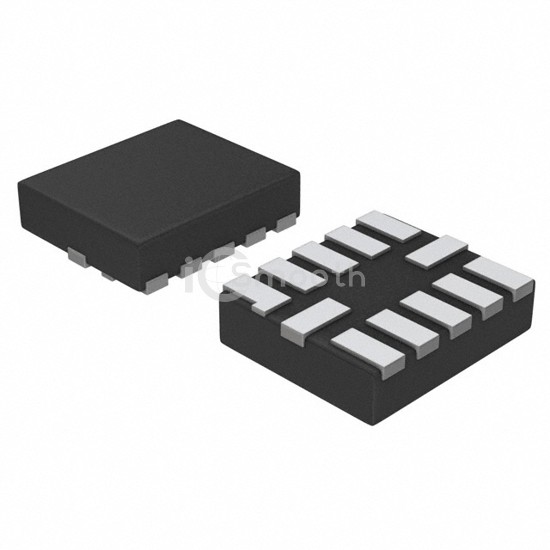

74AHC30GU12X - Nexperia USA Inc. - Logic - Gates and Inverters
REF: 74AHC30GU12X Nexperia USA Inc.
74AHC30GU12X

Nexperia USA Inc.

IC GATE NAND 1CH 8-INP 12XQFN

74AHC30GU12X is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 1CH 8-INP 12XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 12-XFQFN.

Datasheet Request a Quote

In Stock: 9,800

Tiered Pricing USD
4,000+ $0.2450 —
8,000+ $0.2390 -2%
12,000+ $0.2359 -4%
20,000+ $0.2326 -5%
28,000+ $0.2307 -6%
40,000+ $0.2288 -7% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits1
Number of Inputs8
Features-
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)2 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.5V ~ 1.65V
Logic Level - High1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL8ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package12-XQFN (1.7x2)
Package / Case12-XFQFN
