Name: LP5996SD-0833/NOPB
Brand: National Semiconductor
SKU: LP5996SD-0833/NOPB
Price: 0.55 USD
Availability: InStock

REF: LP5996SD-0833/NOPB National Semiconductor

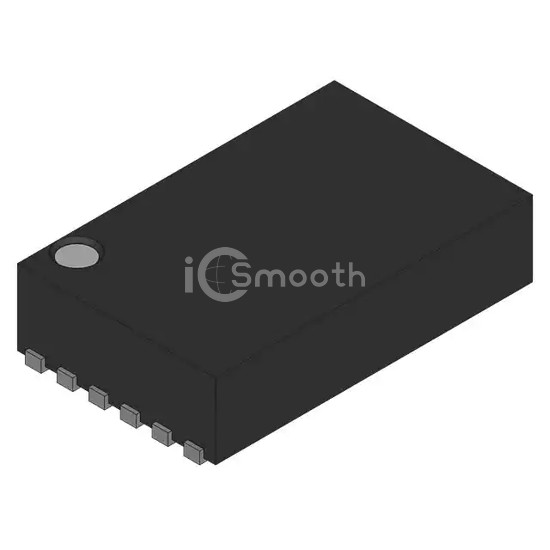

LP5996SD-0833/NOPB

National Semiconductor

IC REG LINEAR FIXED POS LDO REG

LP5996SD-0833/NOPB is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LINEAR FIXED POS LDO REG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFDFN Exposed Pad, current - supply (max) 170 µA.

Datasheet Request a Quote

In Stock: 3,635

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.8V, 3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-, 0.55V @ 300mA
Current - Output	150mA, 300mA

Current - Quiescent (Iq)	110 µA
Current - Supply (Max)	170 µA
PSRR	58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
Control Features	Enable
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-SON (3x3)
