Name: LP3986TL-2818/NOPB
Brand: National Semiconductor
SKU: LP3986TL-2818/NOPB
Price: 0.46 USD
Availability: InStock

REF: LP3986TL-2818/NOPB National Semiconductor

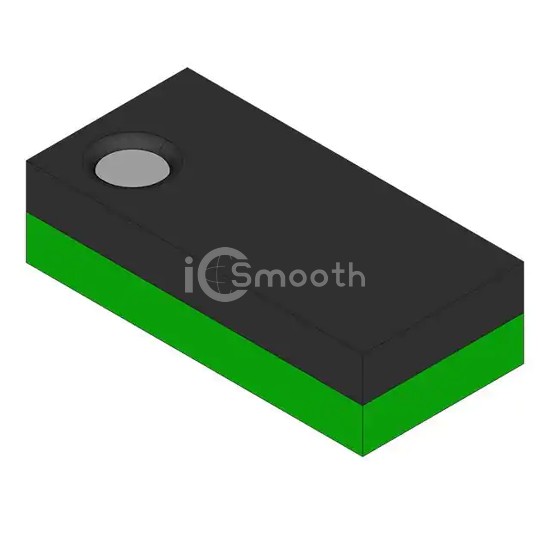

LP3986TL-2818/NOPB

National Semiconductor

IC REG LIN 2.8/1.8V 150MA 8DSBGA

LP3986TL-2818/NOPB is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LIN 2.8/1.8V 150MA 8DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-WFBGA, DSBGA, current - supply (max) 200 µA.

Datasheet Request a Quote

In Stock: 2,884

Tiered Pricing USD

1,000+ $0.4593 —

1,250+ $0.4545 -1%

1,750+ $0.4477 -3%

2,500+ $0.4412 -4%

6,250+ $0.4272 -7%

12,500+ $0.4187 -9% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.8V, 1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.1V @ 150mA
Current - Output	150mA, 150mA

Current - Quiescent (Iq)	130 µA
Current - Supply (Max)	200 µA
PSRR	60dB ~ 50dB (1kHz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WFBGA, DSBGA
Supplier Device Package	8-DSBGA (2x1.3)
