Name: LP38859SX-1.2
Brand: National Semiconductor
SKU: LP38859SX-1.2
Price: 2.49 USD
Availability: InStock

REF: LP38859SX-1.2 National Semiconductor

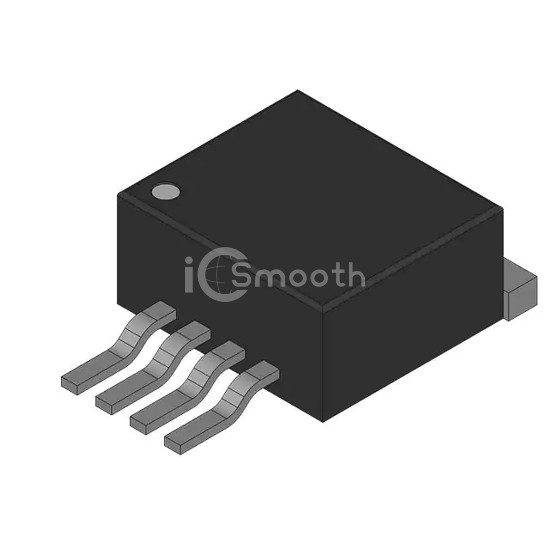

LP38859SX-1.2

National Semiconductor

IC REG LIN 1.2V 3A DDPAK/TO263-5

LP38859SX-1.2 is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LIN 1.2V 3A DDPAK/TO263-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 15 mA.

Datasheet Request a Quote

In Stock: 1,148

Tiered Pricing USD

500+ $2.4899 —

1,000+ $2.4223 -3%

1,500+ $2.3884 -4%

2,500+ $2.3509 -6%

3,500+ $2.3290 -6% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.45V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	8.5 mA
Current - Supply (Max)	15 mA
PSRR	80dB ~ 65dB (120Hz ~ 1kHz)
Control Features	Soft Start
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	DDPAK/TO-263-5
