Name: LP3872EMP-3.3
Brand: National Semiconductor
SKU: LP3872EMP-3.3
Price: 2.08 USD
Availability: InStock

REF: LP3872EMP-3.3 National Semiconductor

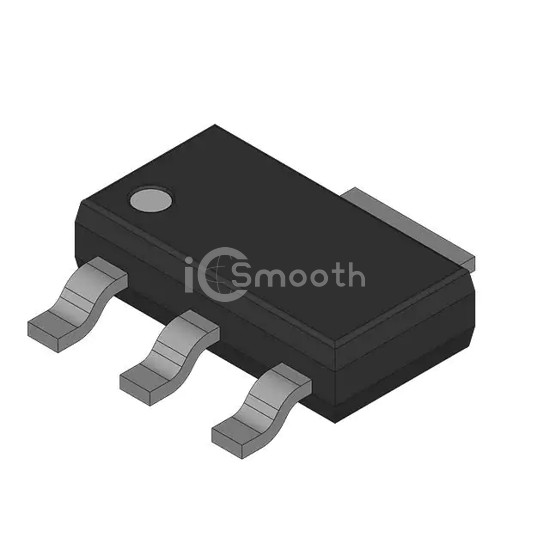

LP3872EMP-3.3

National Semiconductor

IC REG LINEAR 3.3V 1.5A SOT223

LP3872EMP-3.3 is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LINEAR 3.3V 1.5A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-261-5, TO-261AB, current - supply (max) 15 mA.

Datasheet Request a Quote

In Stock: 2,212

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.55V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	15 mA
PSRR	73dB ~ 57dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-5, TO-261AB
Supplier Device Package	SOT-223
