Name: LP38691SD-ADJ
Brand: National Semiconductor
SKU: LP38691SD-ADJ
Price: 1.10 USD
Availability: InStock

REF: LP38691SD-ADJ National Semiconductor

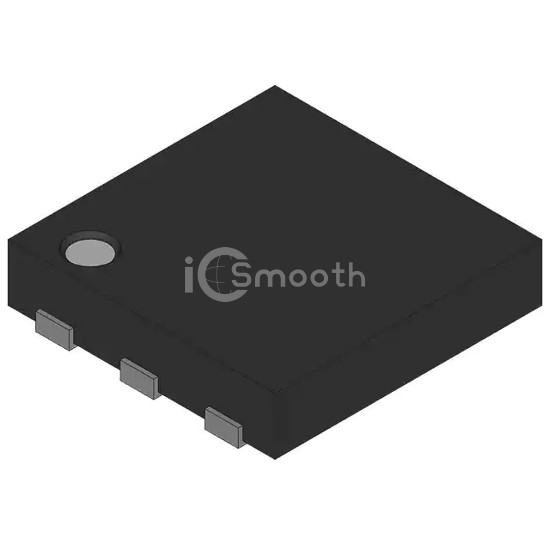

LP38691SD-ADJ

National Semiconductor

IC REG LIN POS ADJ 500MA 6WSON

LP38691SD-ADJ is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LIN POS ADJ 500MA 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-WDFN Exposed Pad, current - supply (max) 100 µA.

Datasheet Request a Quote

In Stock: 3,812

Tiered Pricing USD

1,000+ $1.0984 —

2,000+ $1.0226 -7%

5,000+ $0.9848 -10%

10,000+ $0.9469 -14% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	9V
Voltage Dropout (Max)	-
Current - Output	500mA

Current - Quiescent (Iq)	55 µA
Current - Supply (Max)	100 µA
PSRR	55dB (120Hz)
Control Features	-
Protection Features	Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-WSON (3x3)
