Name: LP3856ESX-2.5
Brand: National Semiconductor
SKU: LP3856ESX-2.5
Price: 2.94 USD
Availability: InStock

REF: LP3856ESX-2.5 National Semiconductor

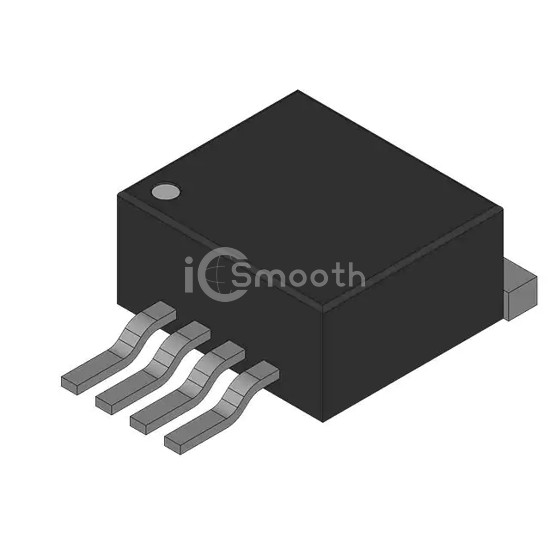

LP3856ESX-2.5

National Semiconductor

IC REG LINEAR FIXED POS LDO REG

LP3856ESX-2.5 is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LINEAR FIXED POS LDO REG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 8,101

Tiered Pricing USD

500+ $2.9413 —

1,000+ $2.8637 -3%

1,500+ $2.8249 -4%

2,500+ $2.7819 -5%

3,500+ $2.7567 -6% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	4 mA
Current - Supply (Max)	10 mA
PSRR	73dB ~ 57dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	DDPAK/TO-263-5
