Name: LP3855ES-ADJ
Brand: National Semiconductor
SKU: LP3855ES-ADJ
Price: 3.06 USD
Availability: InStock

REF: LP3855ES-ADJ National Semiconductor

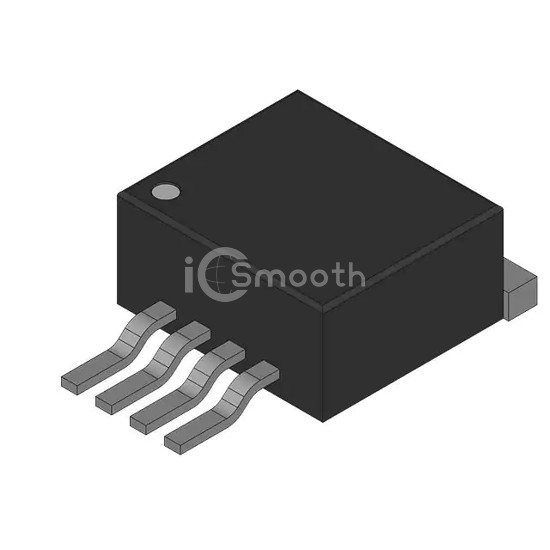

LP3855ES-ADJ

National Semiconductor

IC REG LIN POS ADJ 1.5A DDPAK

LP3855ES-ADJ is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LIN POS ADJ 1.5A DDPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 4,917

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	1.23V
Voltage - Output (Max)	6.6V
Voltage Dropout (Max)	0.435V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	3 mA
Current - Supply (Max)	10 mA
PSRR	73dB ~ 57dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	DDPAK/TO-263-5
