Name: LMP7709MA
Brand: National Semiconductor
SKU: LMP7709MA
Availability: InStock

REF: LMP7709MA National Semiconductor

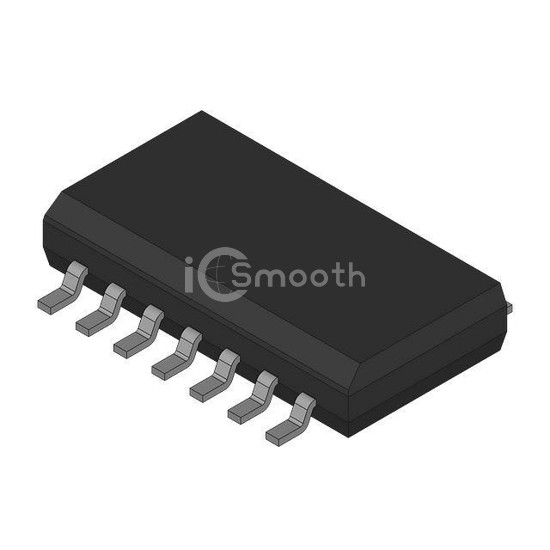

LMP7709MA

VIDEO AMPLIFIER, 1 CHANNEL(S), 4

LMP7709MA is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by National Semiconductor. VIDEO AMPLIFIER, 1 CHANNEL(S), 4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.154", 3.90mm Width), current - supply 2.9mA (x4 Channels).

Datasheet Request a Quote

In Stock: 7,205

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	5.9V/µs
Gain Bandwidth Product	15 MHz
-3db Bandwidth	-
Current - Input Bias	0.2 pA
Voltage - Input Offset	37 µV

Current - Supply	2.9mA (x4 Channels)
Current - Output / Channel	86 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	12 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
