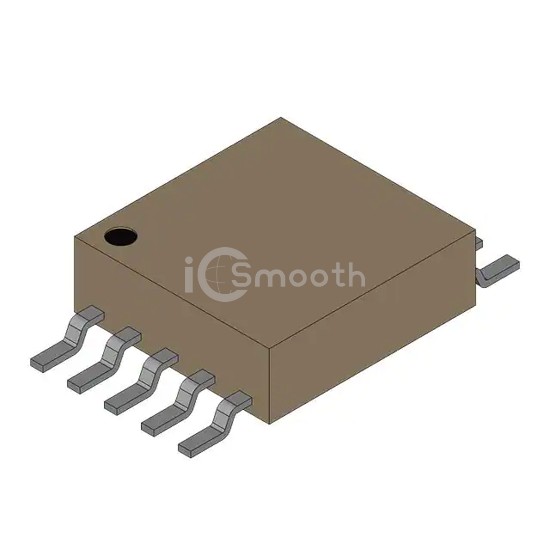

Name: LMP2012WG-QMLV
Brand: National Semiconductor
SKU: LMP2012WG-QMLV
Availability: InStock

REF: LMP2012WG-QMLV National Semiconductor

LMP2012WG-QMLV

IC OPAMP GP 2 CIRCUIT 10CFP

LMP2012WG-QMLV is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by National Semiconductor. IC OPAMP GP 2 CIRCUIT 10CFP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 10-CSOIC (0.241", 6.12mm Width), current - supply 930µA (x2 Channels).

Datasheet Request a Quote

In Stock: 4,201

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	4V/µs
Gain Bandwidth Product	3 MHz
-3db Bandwidth	-
Current - Input Bias	3 pA
Voltage - Input Offset	0.12 µV

Current - Supply	930µA (x2 Channels)
Current - Output / Channel	15 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	5 V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	10-CSOIC (0.241", 6.12mm Width)
Supplier Device Package	10-CFP
