Name: LM5112MY
Brand: National Semiconductor
SKU: LM5112MY
Price: 0.78 USD
Availability: InStock

REF: LM5112MY National Semiconductor

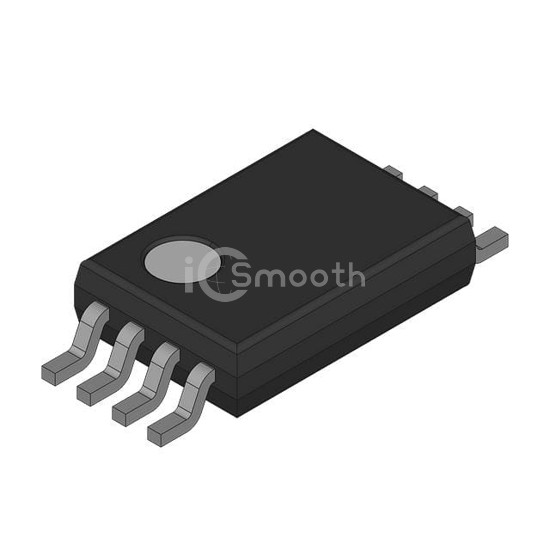

LM5112MY

BUFFER/INVERTER BASED MOSFET DRI

LM5112MY is a PMIC - Gate Drivers manufactured by National Semiconductor. BUFFER/INVERTER BASED MOSFET DRI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3.5V ~ 14V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 1,793

Tiered Pricing USD

1,000+ $0.7844 —

2,000+ $0.7623 -3%

3,000+ $0.7513 -4%

5,000+ $0.7391 -6%

7,000+ $0.7320 -7%

10,000+ $0.7251 -8% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel MOSFET
Voltage - Supply	3.5V ~ 14V
Logic Voltage - VIL, VIH	0.8V, 2.3V
Current - Peak Output (Source, Sink)	3A, 7A

Input Type	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	14ns, 12ns
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-MSOP-PowerPad
