LM5104MX

In Stock: 5,616

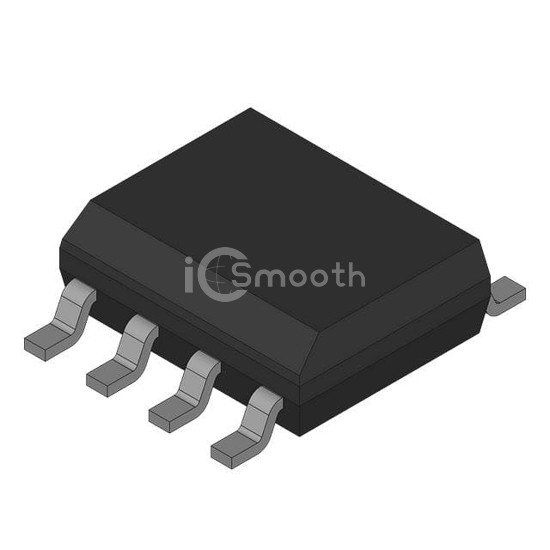

LM5104MX - National Semiconductor - PMIC - Gate Drivers
REF: LM5104MX National Semiconductor
LM5104MX

National Semiconductor

HALF BRIDGE BASED PERIPHERAL DRI

LM5104MX is a PMIC - Gate Drivers manufactured by National Semiconductor. HALF BRIDGE BASED PERIPHERAL DRI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,616

Tiered Pricing USD
2,500+ $1.8062 —
5,000+ $1.7715 -2% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.6A, 1.6A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)600ns, 600ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
