LM5101M

In Stock: 3,703

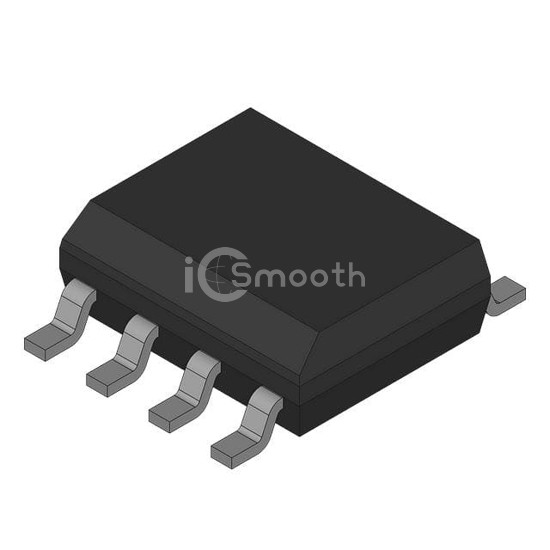

LM5101M - National Semiconductor - PMIC - Gate Drivers
REF: LM5101M National Semiconductor
LM5101M

National Semiconductor

BUFFER/INVERTER BASED PERIPHERAL

LM5101M is a PMIC - Gate Drivers manufactured by National Semiconductor. BUFFER/INVERTER BASED PERIPHERAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,703

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.6A, 1.6A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)600ns, 600ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
